XHX-STC
Hensing Brand or Customization

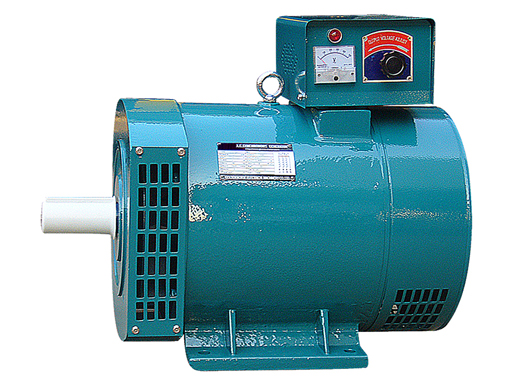

Hengsing Brand Brush Alternator-STC series
Detailed Product Description
1.STC Generator Three-phase A.C. Synchronous alternators
2.Competitive Price
3.Certificate: ISO/CE/CCC
4.Excellent quality STC Generator Three-phase A.C. Synchronous alternators/generators
The alternators/generators are to be used in town, the countryside, worksite, mountain and pasture lands as a electric power source for lighting purpose. It can also be used as a reserved power source for emergent case. The alternators/generators are of drip-proof with rotary field type and with the adoption of harmonic excitation system, that allow your easy operation and simple maintenance. The alternators/generators are of three-phase four-wire type, making use of star connection with neutral point. The rated line voltage is 400V. phase voltage 230V. frequency 50HZ. Power factor 0.8(lag). It can provide 60HZ and the other voltage’s alternators/generators according to necessary. They can be coupled with a prime mover directly or through V-belt making right or reverse continuous rotation at the rated speed. When the revolution slip of prime mover is 3% and load varies in the range of 0-100% cos1.0-0.8 they give good constant voltage. After sudden change (increase or decrease ) of load. The alternators/generators will soon return to their normal working state. Without any starting devices the alternators/generators can directly start an unloaded squirrel cage induction motor.
Model | Prime | Voltage | Current | No.of pole | Speed | Volt.regulation | |
(kW) | (kVA) | (V) | (A) | (r.p.m) | (%) | ||
STC-3 | 3 | 3.8 | 230/400 | 5.4 | 4 | 1500 | ±5 |
STC-5 | 5 | 6.3 | 9 | 4 | 1500 | ||
STC-7.5 | 7.5 | 9.4 | 13.5 | 4 | 1500 | ||
STC-10 | 10 | 12.5 | 18.1 | 4 | 1500 | ||
STC-12 | 12 | 15 | 21.7 | 4 | 1500 | ||
STC-15 | 15 | 18.8 | 27.1 | 4 | 1500 | ||
STC-20 | 20 | 25 | 36.1 | 4 | 1500 | ||
STC-30 | 30 | 37.5 | 54.1 | 4 | 1500 | ||
STC-40 | 40 | 50 | 72.2 | 4 | 1500 | ||
STC-50 | 50 | 62.5 | 90.2 | 4 | 1500 | ||
