XHX-Ricardo
Hensing Brand or Customization

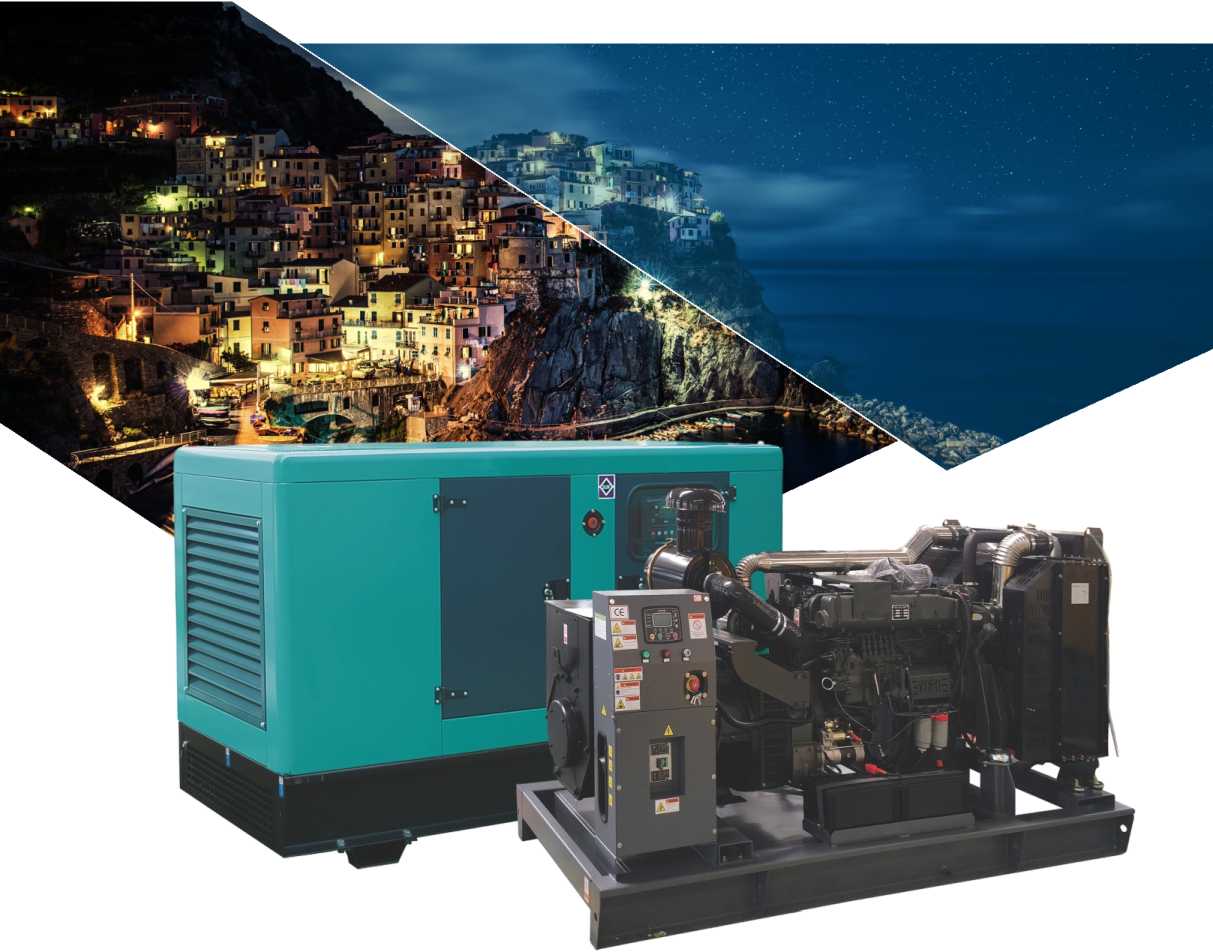

Ricardo Series Diesel Generator Set
Power coverage from 10kva-344kva
Engine:Ricardo Series Engine
Speed:1500/1800rpm
Allternator: Stamford / Leroysomer / Marathon /Mecc Alt/Brushless Stamford Type
IP &Insulation Class: IP22-23 &F/H
Frequency: 50/60HZ
Controller: Deepsea / Smartgen 1 Datakom / ComAp/ XHX Own brand
| RICARDO | |||||||||
| Generator Set Performance | Generator Set Performance | Dimension | |||||||
| Model | OUTPUT POWER | Fre. Hz | ENGINE | Power | Fuel Comsumption | Cylinder | Open type /weight | Soundproof type /weight | |
| PRIME OUTPUT (KW/KVA) | STANDBY Power (KW/KVA) | ||||||||
| MODEL | KW | L/H | NO. | mm /kg | mm/ kg | ||||
| XHX-R8 | 8/10 | 8.8/11 | 50 | Y480BD | 14 | 1.9 | 4 | 1450x640x950/630 | 1900x850x1150/650 |
| XHX-R10 | 10/13 | 11/14 | 50 | Y480BD | 14 | 2.4 | 4 | 1450x640x950/630 | 1900x850x1150/650 |
| XHX-R12 | 12/15 | 13.2/16.5 | 50 | Y480BD | 14 | 2.9 | 4 | 1450x640x950/650 | 1900x850x1150/700 |
| XHX-R15 | 15/18 | 16.5/20 | 50 | Y485BD | 17 | 3.7 | 4 | 1450x640x950/700 | 1900x850x1150/750 |
| XHX-R18 | 18/23 | 20/25 | 50 | Y485BZD | 22 | 4.4 | 4 | 1500x640x950/750 | 1900x850x1150/780 |
| XHX-R18 | 18/23 | 20/25 | 50 | 495D | 26.5 | 4.4 | 4 | 1600x700x1200/800 | 2100x900x1300/850 |
| XHX-R20 | 20/25 | 22/27.5 | 50 | K4100D | 30.1 | 5.1 | 4 | 1600x700x1200/810 | 2100x900x1300/950 |
| XHX-R25 | 25/30 | 27.5/33 | 50 | N4100D | 30 | 6.4 | 4 | 1600x700x1200/810 | 2100x900x1300/980 |
| XHX-R30 | 30/37.5 | 33/41 | 50 | N4105D | 38 | 7.7 | 4 | 1800x700x1200/830 | 2200x900x1300/1000 |
| XHX-R40 | 40/50 | 44/55 | 50 | N4105D | 46 | 10.3 | 4 | 1800x700x1200/850 | 2300x900x1300/1100 |
| XHX-R50 | 50/63 | 55/69 | 50 | N4105ZD | 56 | 12.4 | 4 | 1800x700x1200/880 | 2300x900x1300/1100 |
| XHX-R68 | 68/85 | 75/93 | 50 | R4105BZLD | 60 | 15.7 | 4 | 1800x700x1200/890 | 2550x1050x1350/1150 |
| XHX-R80 | 80/100 | 88/110 | 50 | R6105ZDS | 84 | 18.4 | 6 | 2300x900x1300/1100 | 2800x1100x1550/1610 |
| XHX-R100 | 100/125 | 110/137 | 50 | R6105AZLDS | 121 | 23.1 | 6 | 2300x900x1300/1150 | 2800x1100x1550/1610 |
| XHX-R120 | 120/150 | 132/165 | 50 | R6105BZLDS | 132 | 27.7 | 6 | 2300x900x1300/1200 | 2920x1100x1550/1710 |
| XHX-R140 | 140/175 | 154/193 | 50 | R6110ZLDS | 170 | 32.3 | 6 | 2350x900x1350/1250 | 3100x1200x1700/1850 |
| XHX-R160 | 160/200 | 176/220 | 50 | 6126-68DE | 187 | 34.4 | 6 | 2400x1000x1400/1350 | 3700x1250x2000/2750 |
| XHX-R180 | 180/225 | 198/248 | 50 | 6126-42DE | 231 | 38.7 | 6 | 2500x1000x1400/1400 | 3700x1250x2000/2790 |
| XHX-R200 | 200/250 | 220/275 | 50 | 6126A-260DE | 250 | 42 | 6 | 2600x1050x1450/1500 | 3800x1450x2000/3100 |
| XHX-R240 | 240/300 | 264/330 | 50 | 6127A-275DE | 275 | 50 | 6 | 2800x1150x1500/1600 | 3800x1450x2000/3150 |
| XHX-R275 | 275/344 | 303/379 | 50 | WT12D-308E | 308 | 59.1 | 6 | 2800x1150x1500/1700 | 4000x1450x2200/3550 |
