XHX-ATS
Hensing Brand or Customization

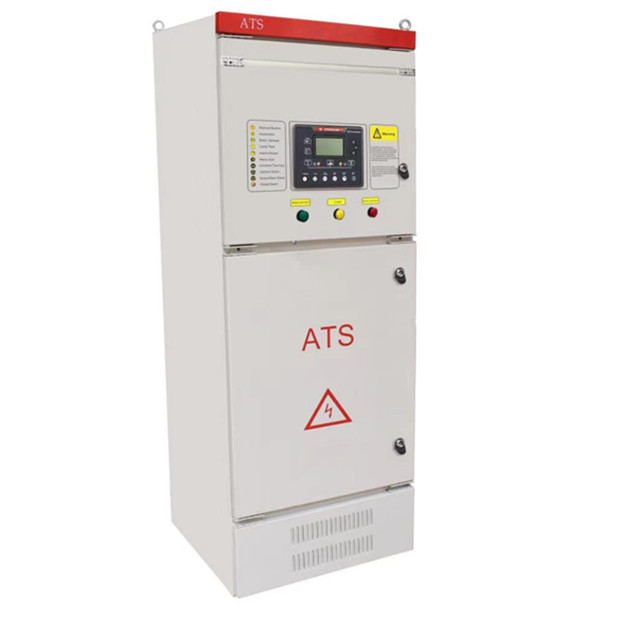

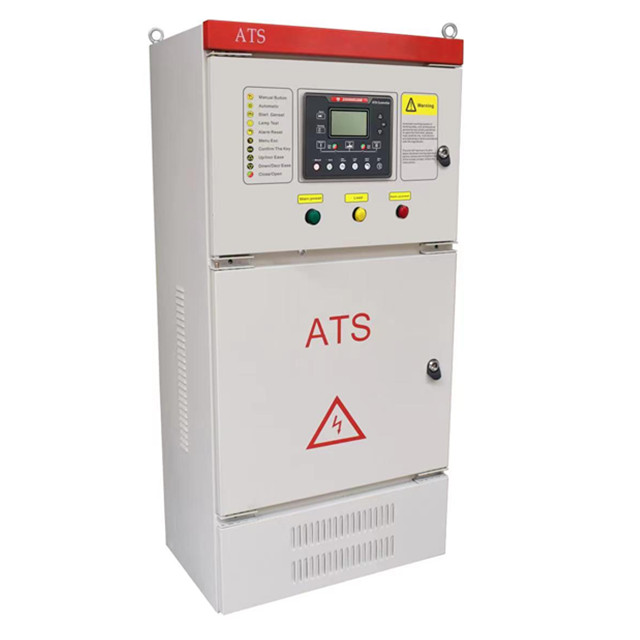

XHX-ATS Cabinet
ATS Dual Power Switching Cabinet For ATS -1200AT, 3P, 480V, 65Kaic, Nema-1. | ||||
| Name of Control Cabinet | ATS Cabinet | |||
| Main Functions | It is designed for manual/auto synchronizing of multiple genset, automatic start/stop, having the functions ofidle/rated speed control, voltage regulation, fault protection, data measurement, synchronize and share load automatically, parallel running. It is also applied to a single genset constant power output and mains parallel with grid run. It is mainly composed of cabinet, genset controller-CLE8510, battery charger-BAC06A, electronic governor (provided by the genset manufacturer), circuit breakers. It can be applied to various types of diesel genset control systems such as electronic speed, and EFI. | |||
| Model | ||||
| Installation Mode | Wall-mounted Type Vertical Type | |||
| Control Module | ATS HAT600/HAT700 | |||
| Circuit Breaker type | 125A/150A/200A/250A/400A/630A/800A/1000A/1250A/1600A/2000A/2500A/3200A/4000A/6300A | |||
| Circuit Breaker type | T TYPE /3POLE | |||
| Power Supply | DC/AC | |||
| Voltage/Frequency/Current/Power | Display&Protect | |||
| Battery voltage | Display&Protect | |||
| Total Running Time/Power | Display | |||
| PLC Function | Users can use PLC editing to achieve the functions they need | |||
| Battery Charging | Support the charging of the battery, the maximum charging current is 12V/6A, 24V/3A | |||
| Auto Start | Start the genset antomaticlly/start the genset remotely when the Mains is invalid | |||
| Case Dimensions(mm) | 1200*600*400 / 1600*700*450 / 1800*800*600 / 2200*800*800 (size as clients requested) | |||
| Main Standby Switch | • | |||
| Closing Indication | • | |||
| Cabinet Door Lock | • | |||
| Working Temperature and Humidity | (-25~+70)℃/(20~90)% | |||
| Working Altitude | ≤2500m | |||
| IP Degree | WATERPROOF | |||
