XHX-Lovol
Hensing Brand or Customization

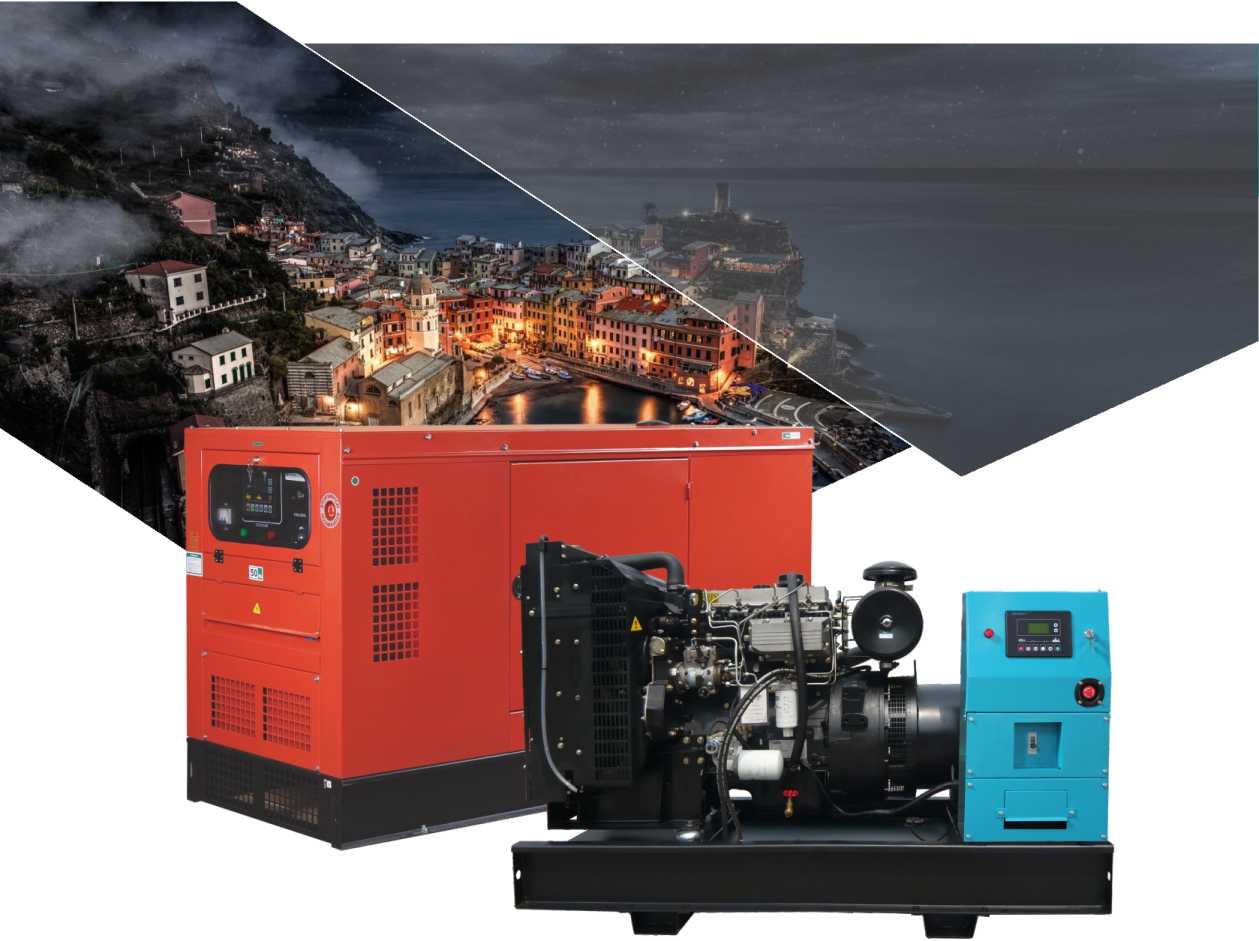

Lovol Series Diesel Generator Set
Power coverage from 31.3kva-175kva
Engine:Lovol Brand
Speed:1500/1800rpm
Allternator: Stamford / Leroysomer / Marathon /Mecc Alt/Brushless Stamford Type
IP &Insulation Class: IP22-23 &F/H
Frequency: 50/60HZ
Controller: Deepsea / Smartgen 1 Datakom / ComAp/ XHX Own brand
| LOVOL Series Diesel Generator | |||||||||
| Generator Set Performance | Generator Set Performance | Dimension | |||||||
| Model | OUTPUT POWER | Fre. Hz | ENGINE | Power | Fuel Comsumption | Cylinder | Open type /weight | Soundproof type /weight | |
| PRIME OUTPUT (KW/KVA) | STANDBY Power (KW/KVA) | ||||||||
| MODEL | KW | L/H | NO. | mm /kg | mm/ kg | ||||
| XHX-L25 | 25/31.25 | 27.5/34.3 | 50 | 1003G | 28 | 6 | 3 | 1600x850x1200/700 | 2300x1000x1300/1000 |
| XHX-L30 | 30/37.5 | 33/41.2 | 50 | 1004G | 40 | 9.8 | 4 | 1700x850x1200/750 | 2300x1000x1300/1050 |
| XHX-L34 | 34/42.5 | 37.4/46.8 | 50 | 1003TG1A | 38 | 9 | 3 | 1700x850x1200/750 | 2300x1000x1300/1050 |
| XHX-L40 | 40/50 | 44/55 | 50 | 1003TG | 44 | 10.7 | 3 | 1800x850x1200/850 | 2300x1000x1300/1150 |
| XHX-L40 | 40/50 | 44/55 | 50 | 1004TG1A | 52 | 12.4 | 4 | 1800x850x1200/1000 | 2500x1000x1300/1250 |
| XHX-L50 | 50/62.5 | 55/68.8 | 50 | 1004TG | 65.7 | 15.7 | 4 | 1900x850x1200/1200 | 2500x1000x1300/1630 |
| XHX-L75 | 75/94 | 82.5/103.5 | 50 | 1006TG1A | 84 | 20 | 6 | 2150x900x1400/1200 | 2800x1100x1550/1630 |
| XHX-L75 | 75/94 | 82.5/103.5 | 50 | 1006TG3 | 86 | 20.5 | 6 | 2150x900x1400/1200 | 2800x1100x1550/1630 |
| XHX-L80 | 80/100 | 88/110 | 50 | 1006TG2A | 92 | 21.9 | 6 | 2150x900x1400/1200 | 2800x1100x1550/1630 |
| XHX-L100 | 100/125 | 110/138 | 50 | 1006TAG1A | 106 | 25.3 | 6 | 2150x900x1400/1200 | 2800x1100x1550/1630 |
| XHX-L100 | 100/125 | 110/138 | 50 | 1006TAG | 12 | 28.8 | 6 | 2150x900x1400/1200 | 2800x1100x1550/1630 |
| XHX-L120 | 120/150 | 132/165 | 50 | 1106C-P6TAG2 | 130 | 31 | 6 | 2200x900x1400/1250 | 3000x1100x1700/1670 |
| XHX-L120 | 120/150 | 132/165 | 50 | 1106C-P6TAG3 | 141 | 33.6 | 6 | 2200x950x1400/1250 | 3000x1100x1700/1670 |
| XHX-L140 | 140/175 | 154/192.5 | 50 | 1106C-P6TAG4 | 158 | 37.6 | 6 | 2600x1000x1600/1650 | 3200x1300x1780/2080 |
