XHX-Yuchai
Hensing Brand or Customization

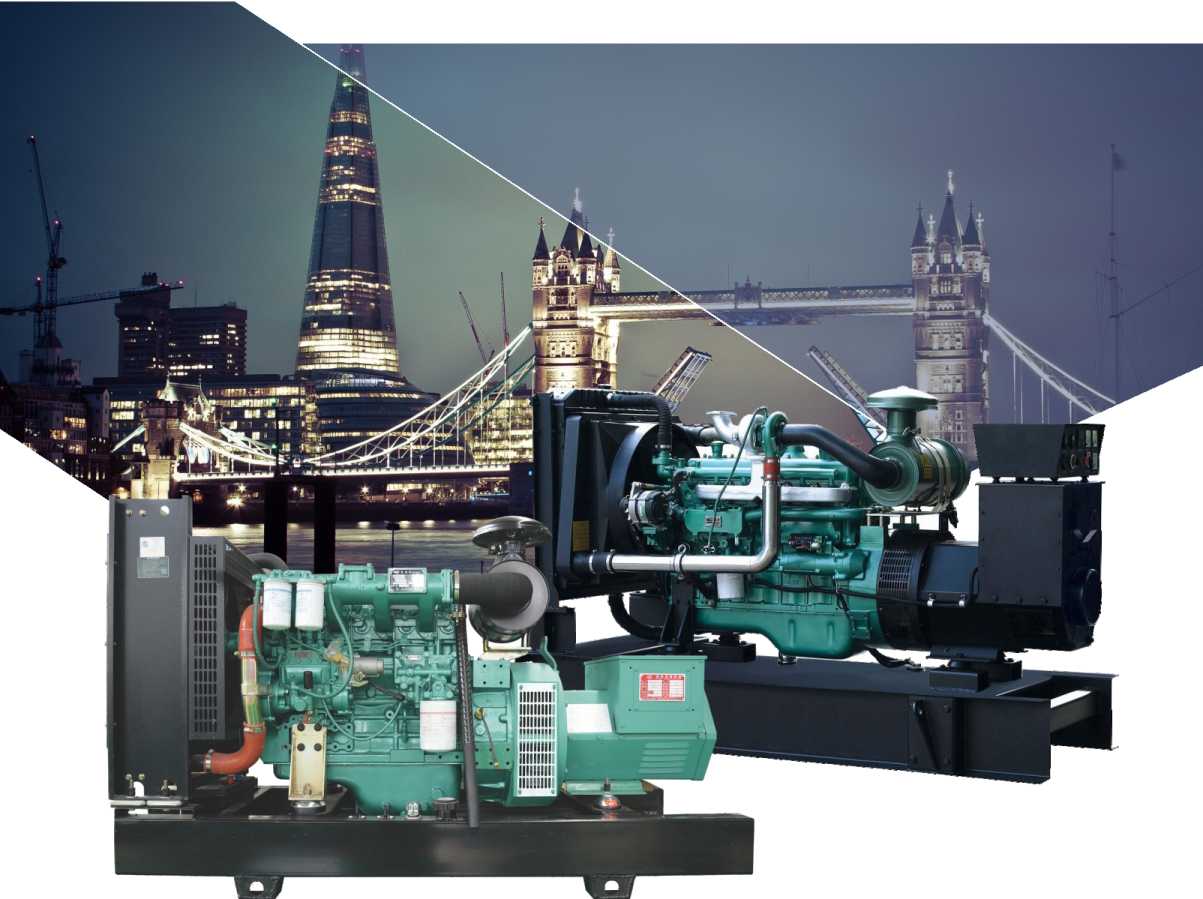

Yuchai Series Diesel Generator Set
Power coverage from 23kva-2063kva
Engine:Yuchai Brand
Speed:1500/1800rpm
Allternator: Stamford / Leroysomer / Marathon /Mecc Alt/Brushless Stamford Type
IP &Insulation Class: IP22-23 &F/H
Frequency: 50/60HZ
Controller: Deepsea / Smartgen 1 Datakom / ComAp/ XHX Own brand
| 玉柴（YUCHAI）数据 | |||||||||
| Generator Set Performance | Generator Set Performance | Dimension | |||||||
| Model | OUTPUT POWER | Fre. Hz | ENGINE | Power | Fuel Comsumption | Cylinder | Open type /weight | Soundproof type /weight | |
| PRIME OUTPUT (KW/KVA) | STANDBY Power (KW/KVA) | ||||||||
| MODEL | KW | L/H | NO. | mm /kg | mm/ kg | ||||
| XHX-Y18 | 18/23 | 20/25 | 50 | YC4F35-D21 | 21 | 4.3 | 4 | 1500x660x1100/620 | 2000x900x1250/880 |
| XHX-Y24 | 24/30 | 26/33 | 50 | YC4FA40Z-D20 | 28 | 5.5 | 4 | 1550x660x1150/620 | 2000x900x1250/880 |
| XHX-Y30 | 30/38 | 33/41 | 50 | YC4FA55Z-D20 | 36.8 | 6.9 | 4 | 1700x660x1150/640 | 2100x900x1250/900 |
| XHX-Y34 | 34/43 | 37/47 | 50 | YC4D60-D21 | 40 | 8.2 | 4 | 1850x800x1200/780 | 2300x1000x1300/1080 |
| XHX-Y50 | 50/63 | 55/69 | 50 | YC4D85Z-D20 | 55 | 11.5 | 4 | 1950x800x1200/840 | 2400x1000x1300/1160 |
| XHX-Y50 | 50/63 | 55/69 | 50 | YC4D90Z-D20 | 60 | 11.5 | 4 | 1950x800x1200/840 | 2400x1000x1300/1160 |
| XHX-Y60 | 60/75 | 66/83 | 50 | YC4A100Z-D20 | 70 | 12.3 | 4 | 1950x800x1300/1080 | 2400x1000x1300/1380 |
| XHX-Y80 | 80/100 | 88/124 | 50 | YC6B135Z-D20 | 90 | 15.8 | 6 | 2200x800x1300/1300 | 2800x1100x1550/1720 |
| XHX-Y90 | 90/113 | 99/124 | 50 | YC6B155L-D21 | 103 | 17.6 | 6 | 2350x900x1400/1380 | 2800x1100x1550/1780 |
| XHX-Y108 | 108/135 | 119/149 | 50 | YC6B180L-D20 | 120 | 21.2 | 6 | 2450x900x1400/1430 | 3000x1100x1700/1860 |
| XHX-Y128 | 128/160 | 141/176 | 50 | YC6B205L-D20 | 138 | 25.0 | 6 | 2450x900x1400/1480 | 3000x1100x1700/1900 |
| XHX-Y140 | 140/175 | 154/193 | 50 | YC6A230L-D20 | 155 | 27.3 | 6 | 2550x900x1400/1620 | 3200x1300x1830/2060 |
| XHX-Y150 | 150/188 | 165/203 | 50 | YC6A245L-D21 | 165 | 29.3 | 6 | 2550x900x1400/1640 | 3200x1100x1600/2080 |
| XHX-Y160 | 160/200 | 176/220 | 50 | YC6G270L-D20 | 180 | 34.4 | 6 | 2600x980x1450/1660 | 3500x1200x2030/2280 |
| XHX-Y170 | 170/213 | 187/234 | 50 | YC6MK285L-D20 | 192 | 33.2 | 6 | 2850x1060x1700/2050 | 3500x1200x2030/2740 |
| XHX-Y220 | 220/275 | 242/303 | 50 | YC6MK350L-D20 | 235 | 42.9 | 6 | 2920x1060x1700/2480 | 3700x1250x2000/3070 |
| XHX-Y250 | 250/313 | 275/344 | 50 | YC6MK420L-D20 | 281 | 48.8 | 6 | 2920x1060x1700/2600 | 3800x1450x2000/3180 |
| XHX-Y300 | 300/375 | 330/413 | 50 | YC6MJ480L-D20 | 321 | 63.0 | 6 | 3000x1060x1700/2720 | 3800x1450x2000/3460 |
| XHX-Y340 | 340/425 | 374/468 | 50 | YC6T550L-D21 | 368 | 65.3 | 6 | 3550x1380x2050/4180 | 4300x1700x2200/5480 |
| XHX-Y360 | 360/450 | 396/495 | 50 | YC6T600L-D22 | 401 | 70.1 | 6 | 3550x1380x2050/4180 | 4300x1700x2200/5480 |
| XHX-Y400 | 400/500 | 440/550 | 50 | YC6T660L-D20 | 441 | 76.8 | 6 | 3550x1380x2050/4280 | 4300x1700x2200/5580 |
| XHX-Y420 | 420/525 | 462/578 | 50 | YC6T700L-D20 | 468 | 80.6 | 6 | 3550x1380x2050/4280 | 4300x1700x2200/5580 |
| XHX-Y480 | 480/600 | 528/660 | 50 | YC6TD780L-D20 | 520 | 108.0 | 6 | 3600x1380x2100/4700 | 4500x1800x2350/5950 |
| XHX-Y500 | 500/625 | 550/688 | 50 | YC6TD840L-D20 | 560 | 112.5 | 6 | 3600x1380x2100/4700 | 4500x1800x2350/5950 |
| XHX-Y540 | 540/675 | 594/743 | 50 | YC6TD900-D31 | 605 | 118.8 | 6 | 3600x1380x2100/4850 | 4500x1800x2350/6100 |
| XHX-Y600 | 600/750 | 660/825 | 50 | YC6C1020L-D20 | 680 | 117.0 | 6 | 4500x1700x2500/7500 | 6058x2438x2896/10000 |
| XHX-Y650 | 650/813 | 715/894 | 50 | YC6C1070L-D20 | 715 | 126.8 | 6 | 4500x1700x2500/7500 | 6058x2438x2896/10000 |
| XHX-Y720 | 720/900 | 792/990 | 50 | YC6C1220L-D20 | 815 | 140.4 | 6 | 4500x1700x2500/7500 | 6058x2438x2896/10000 |
| XHX-Y800 | 800/1000 | 880/1100 | 50 | YC6C1320L-D20 | 880 | 156.0 | 6 | 4500x1700x2500/7500 | 6058x2438x2896/10000 |
| XHX-Y900 | 900/1125 | 990/1238 | 50 | YC6C1520-D31 | 1016 | 189.0 | 6 | 4700x1800x2500/7800 | 6058x2438x2896/10500 |
| XHX-Y1000 | 1000/1250 | 1100/1375 | 50 | YC12VC1680L-D20 | 1120 | 210.0 | 12 | 5000x2000x2500/12300 | 12192x2438x2896/16300 |
| XHX-Y1250 | 1250/1563 | 1375/1719 | 50 | YC12VC2070L-D20 | 1380 | 262.5 | 12 | 5300x2080x2500/12300 | 12192x2438x2896/16300 |
| XHX-Y1370 | 1370/1713 | 1507/1884 | 50 | YC12VC2270L-D20 | 1520 | 287.7 | 12 | 5500x2180x2550/12400 | 12192x2438x2896/16400 |
| XHX-Y1500 | 1500/1875 | 1650/2063 | 50 | YC12VC2510L-D20 | 1680 | 315.0 | 12 | 5600x2280x2600/12400 | 12192x2438x2896/16400 |
| XHX-Y1650 | 1650/2063 | 1815/2263 | 50 | YC12VC2700-D31 | 1805 | 335.0 | 12 | 5700x2280x2600/12500 | 12192x2438x2896/16500 |
